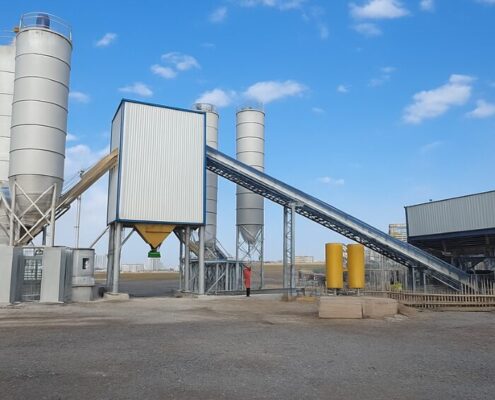

Stationary Concrete Batching Plants
GLOBALMIX
Stationary concrete production equipment
is built to offer maximum rated production capacity and to work long hours, while bringing the necessary flexibility for
use in a wide variety of projects – especially massive infrastructural and precast concrete projects.
|
MODELS |
SGM 60 |
SGM 90 |
SGM 105 |
SGM 120 |
SGM 140 |
SGM 160 |
SGM 200 |
|
Compacted Concrete Output |
60 m³/h |
75 m³/h |
100-110 m³/h |
112-126 m³/h |
130-147 m³/h |
160 m³/h |
200 m³/h |
|
Mixer Capacity (Compacted Concrete) |
1,0 m³ / Cycle |
1,5 m³ / Cycle |
2,25 m³ / Cycle |
3,0 m³ / Cycle |
3,33 m³ / Cycle |
4,0 m³ / Cycle |
5,0 m³ / Cycle |
|
Mixer Type* |
TS / SS |
TS |
TS |
TS |
TS |
TS |
TS |
|
Mixer Motor Power |
2×18,5 Kw / 37 kW |
2x 30 kW |
2×37 kW |
2×55 kW |
2×55 kW |
2×75 kW |
2×90 kW |
|
Aggregate Bins ** |
4x 10 m³ / CT 4x 15 m³ / IT |
4x 25 m³ / IT 4x 35 m³ / IT |
4x 25 m³ / IT 4x 35 m³ / IT |
4x 25 m³ / IT 4x 35 m³ / IT |
4x 25 m³ / IT 4x 35 m³ / IT |
4x 25 m³ / IT (T Type) 4x 35 m³ / IT (T Type) |
5x 25 m³ / IT (T Type) 5x 35 m³ / IT (T Type) |
|
Aggregate Feeding |
Ramp or Pre-Feeding System |
||||||
|
Aggregate Transfer |
Belt |
Belt |
Belt |
Belt |
Belt |
Belt |
Belt |
|
Air Compressor |
Piston Type (5,5 kW) |
Piston Type (5,5 kW) |
Piston Type (7,5 kW) |
Piston Type (7,5 kW) |
Piston Type (7,5 kW) |
Piston Type (7,5 kW) |
Screw Type (11 kW) |
|
Cement Weighing Hopper |
700 kg |
900 kg |
1.250 kg |
1.700 kg |
1.700 kg |
2.250 kg |
2.250 kg |
|
Water Weighing Hopper |
250 kg |
400 kg |
440 kg |
660 kg |
1.000 kg |
1.200 kg |
1.200 kg |
|
Additive Weighing Hopper |
25 kg |
25 kg |
25 kg |
40 kg |
40 kg |
60 kg |
60 kg |
|
Cement Screw Conveyor |
Ø 219×13.000 mm |
Ø 219×13.500 mm |
Ø 273×15.000 mm |
Ø 273×15.000 mm |
Ø 273×15.000 mm |
Ø 323x 12.000 mm |
Ø 323 x 12.000 mm |
