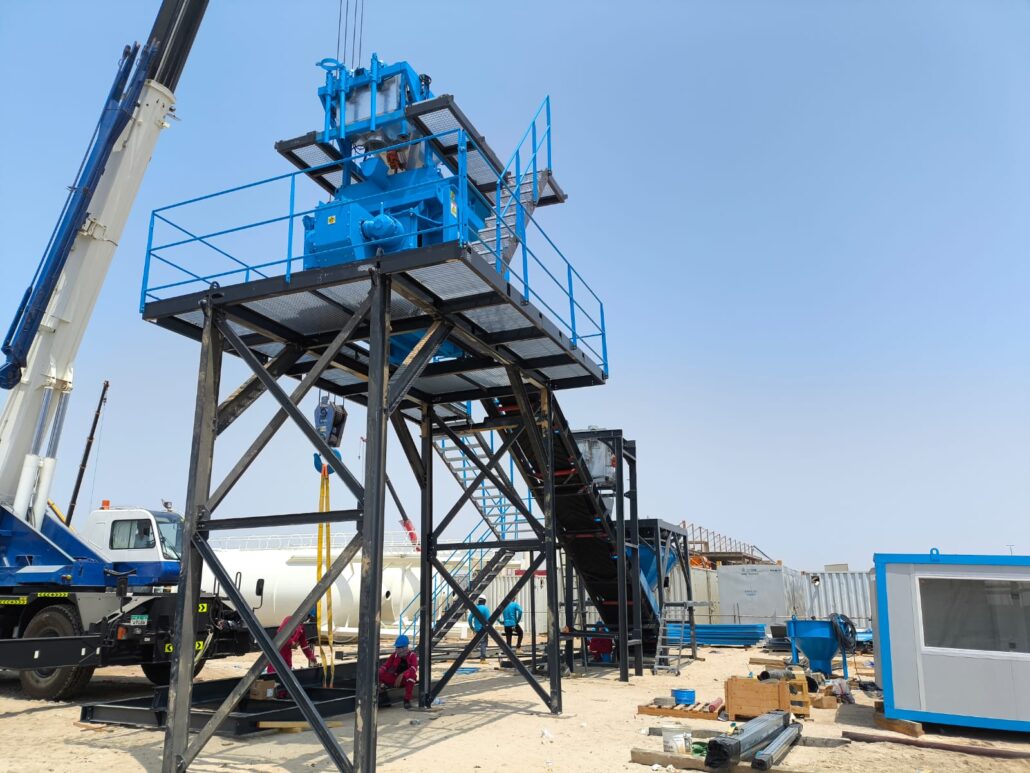

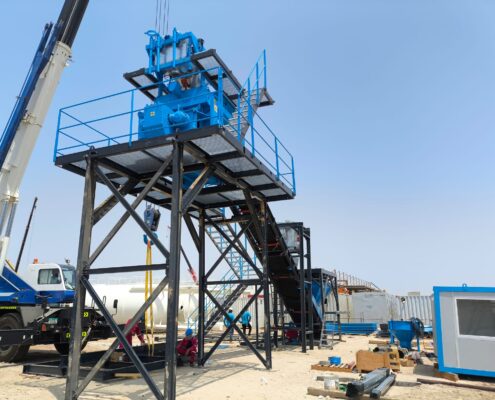

Mobile Concrete Batching Plants
Mobile
batching plants are prefect for temporary construction sites or construction projects whre the equipment is only needed for specific projects. they can be easily installed dismanted, and require minimal preparation and setup times.
|
MODELS |
MGM 60 |
MGM 105 |
MGM 135 |
MGM 145 |
|
Compacted Concrete Output |
60 m³/h |
105 m³/h |
120-140 m³/h |
135-150 m³/h |
|
Mixer Capacity (Compacted Concrete) |
1,0 m³ / Cycle |
2,25 m³ / Cycle |
3,33 m³ / Cycle |
3,50 m³ / Cycle |
|
Mixer Type* |
TS / SS / PL |
TS |
TS |
TS |
|
Mixer Motor Power |
2x 18,5 Kw / 37 kW / 45 kW |
2x 37 kW |
2×55 kW |
2×75 kW |
|
Aggregate Bins** |
4x 10 m³ / CT |
4x 15 m³ / CT |
4x 25 m³ / IT |
4x 25 m³ / IT |
|
Aggregate Feeding |
Ramp or Pre-Feeding System |
|||
|
Aggregate Transfer |
Belt |
Belt |
Belt |
Belt |
|
Air Compressor |
Piston Type (5,5 kW) |
Piston Type (7,5 kW) |
Piston Type (7,5 kW) |
Piston Type (7,5 kW) |
|
Cement Weighing Hopper |
500 kg |
1.350 kg |
1.750 kg |
1.750 kg |
|
Water Weighing Hopper |
200 kg |
620 kg |
1.000 kg |
1.000 kg |
|
Additive Weighing Hopper |
25 kg |
25 kg |
40 kg |
40 kg |
|
Cement Screw Conveyor |
Ø 219 x 11.500 mm |
Ø 273 x 15.000 mm |
Ø 273 x 15.000 mm |
Ø 273 x 15.000 mm |
